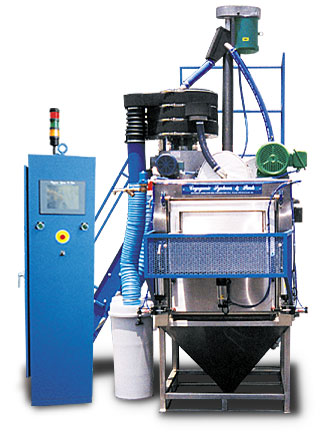

MODEL LCC 6000™
cryogenic deflasher (belt style)
LARGE CAPACITY
no internal gear boxes
APPROXIMATE CYCLE TIMES:
• 3 to 5 minutes
LOAD SIZE:
• 3 to 4 cubic feet/85 to 112 litres of parts
Note:
Parts configuration may limit or expand load capity.
DIMENSIONS:
- 42"/1067mm Wide x 56"/1422mm Deep x 65"/1651mm High (cabinet only)
- Weight 3800 lbs./1727 Kg.
- Work area required approximately: 10'/3000mm x 9'/2700 mm
MATERIALS:
- Cabinet, shafts, transfer auger, separator - 304 stainless steel
INSULATION:
- 3"/76mm thick urethane foam
- Cryogenic door gasket
REFRIGERANT:
- Liquid Nitrogen to -205°F/-130°C
MECHANICAL FEATURES:
- 6 cu. ft/170 Liter Blast Chamber
- 3-4 cu. ft/85-112 litres of parts per load
- Media feed single auger (vertical)
- 100% Belt Support
- 12"/305 mm Diameter Throwing Wheel
(8000 rpm .max.) - 24"/610 mm SWECO separator
- Fewer moving parts reduce noise
ELECTRICAL FEATURES:
- 10.5"/266 mm Color Touch Panel
- 200 Parts Programs Standard
- Automatic & Manual Mode
- Siemens/Allen Bradley PLC Controller
- Siemens/Allen Bradley AC Motor Drives
- Fuseless & Resettable Motor Protection
- 10HP (7.5kW) Variable Speed Throw Wheel Motor
- 3HP (2.2kW) Variable Speed Media Feed
- 1HP (.75kW) Mill Belt Motor
- Energy Efficient, Inverter Duty Motors
- Free Standing Enclosure 18"x72"x36" (457x1829x914mm)
- Security Lock Out
AIR:
80-100 PSI/5.5 – 6.9 Bar
MEDIA :
Plastic cryogenic grade .015"/.38 mm; .020"/.50 mm; .030"/.76 mm; .045/1.14mm; .060/1.52mm
See our offer from Maxi-Blast
INSTALLATION:
Start-up/Training (available)
ELECTRICAL SERVICE:
- 3 Ph, 460 Volts, 60 A, 60 Hz
- 3 Ph, 400 Volts, 60 A, 50 Hz
WARRANTY:
1 year / 2080 hours whichever occurs first, parts only (excluding normal wear items)
